18MPa 220VAC 50Hz Single Phase Hydraulic Power Pack For Work Platform

Short Description:






  • :

Product Detail

Product Tags

1

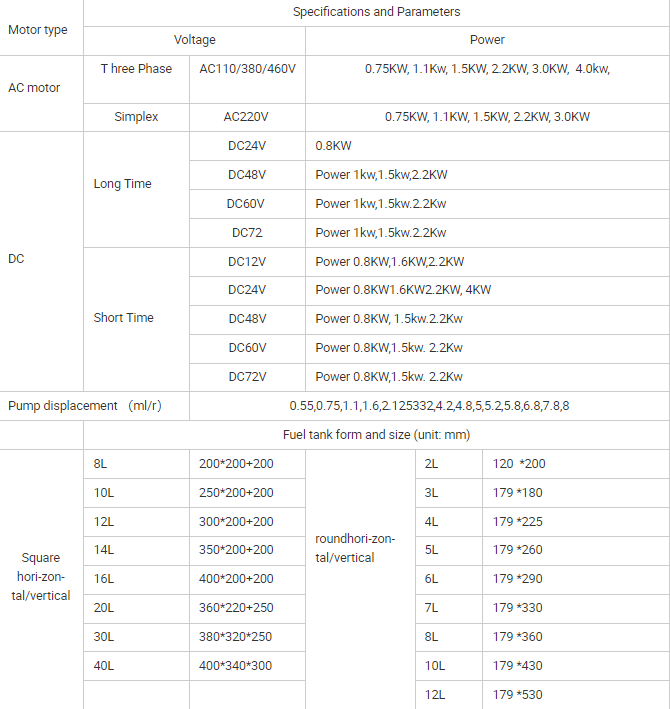

Product parameters

微信截图_20230201133112

55

11

Electric



AC motor
380/220V optional Long-term four-stage motorAset of one-way horizontal



24V4KW high powera set of two-way

Port M14*1.5 wire control switch



122448V optional

A set of two-way wire feed control push button switch



380V

hydraulic power unit

Send 2 meters wire control

A set of two-way with wire control

Features

Carefully selectedmaterials
Each product is carefully se-lected and made of excellentmaterials, with the charac-teristics of wear resistanceand durability
 A full range of support for custom electric components,Pneumatic components.
hydrauliccomponents, hydraulic systems, hy-draulic stations and other productsproduction and processing compa-nies. Support drawing and sample processing and customization
 Factory direct supplywith good quality
Strong production capacity toensure fast delivery of productswith high quality and quantity

FEATURES AT A GLANCE

1.Clean all the hydraulic parts concerned before mounting the Harga Power Pack Hydraulic.

2. Viscosity of the hydraulic oil should be 15-68 cst, which should also be clean and free of impurities. N46 hydraulic oil is recommended.

3. The 12V DC Hydraulic Power Unit should be mounted horizontally.

4. Check the oil level in the tank after the initial operation of the 12V DC Hydraulic Power Unit.

5. Oil changing is required after the initial 100 operation hours, afterwards once every 3000 hours.



Advantage

1. Small volume and light weight and replace of paker hydraulic power system

2 . Within a given range steady automatically adjust the hauling speed, and the infinite speed adjustment can be realized

3. Easy to change direction, can realize operating mechanism rotate and the straight line reciprocating movementwhile under the condition of without changing the motor direction of rotation

4. Tubing connection between hydraulic pump and hydraulic motor, each other is not subject to strict limits on space layout

5. Because of oil as working medium, the components of relative motion between surface can self lubrication, wear small, long service life

6. Operate and control simply, high degree of automation 7. Easy to achieve overload protection



Application

6
