Hard Chrome Plated Rod (Piston Rod)
Short Description:
Product advantage
1. Mirror polishing: beautiful appearance, advanced grinding machine
2. Not easy to rust: stable in nature, pure in material and low in debris
3. Strong compressive resistance: meet the needs of work, not easy to deform
4. High hardness: the surface strength of chrome-plated hard shaft reaches
5.8~60 degrees 5. Environmental protection: the product is non-toxic
6. Fine workmanship: high-quality material selection, high practicability, long wear-resistant life
Application
Main use:

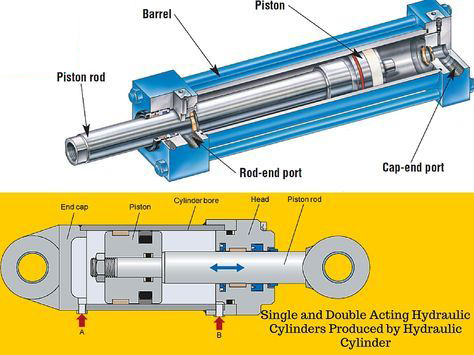

Diameter optical axis, piston rod are widely used in automatic transmission devices, mainly used in hydraulic cylinders, cylinders,
guide posts on mechanical equipment, etc., engraving machinery, woodworking machinery,Printing and dyeing machinery, industrial machinery, etc.
| Chrome Rod List | |

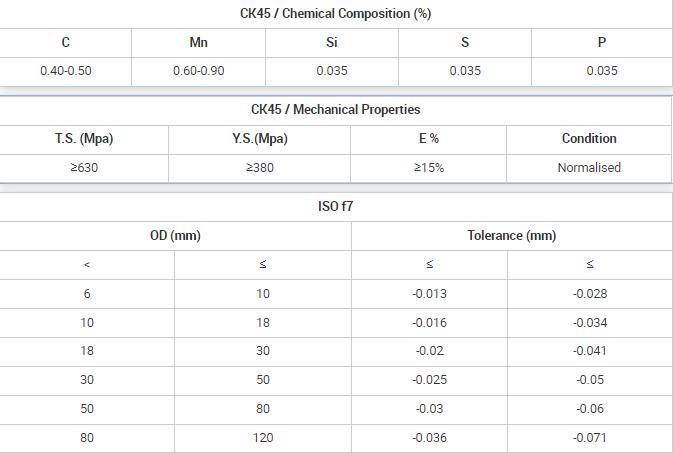

| chrome-plated hydraulic Rod,Surface chrome thickness 20u-25u，OD tolerance ISOf7,roughness Ra0.2，Straightness 0.2/1000，Material CK45 |
|
| OD | weight |
| (mm) | M/kg |
| 4 | 0.1 |
| 6 | 0.2 |
| 8 | 0.4 |
| 10 | 0.6 |
| 12 | 0.9 |
| 14 | 1.2 |
| 15 | 1.4 |
| 16 | 1.6 |
| 18 | 2.0 |
| 19 | 2.2 |
| 19.05 | 2.2 |
| 20 | 2.5 |
| 22 | 3.0 |
| 25 | 3.9 |
| 28 | 4.8 |
| 30 | 5.5 |
| 32 | 6.3 |
| 35 | 7.6 |
| 38.1 | 8.9 |
| 40 | 9.9 |
| 44.45 | 12.2 |
| 45 | 12.5 |
| 50 | 15.4 |
| 50.8 | 15.9 |
| 55 | 18.6 |
| 56 | 19.3 |
| 57.15 | 20.1 |
| 60 | 22.2 |
| 63 | 24.5 |
| 63.5 | 24.9 |
| 65 | 26.0 |
| 69.85 | 30.1 |
| 70 | 30.2 |
| 75 | 34.7 |
| 76.2 | 35.8 |
| 85 | 44.5 |
| 88.9 | 48.7 |
| 90 | 49.9 |
| 95 | 55.6 |
| 100 | 61.7 |
| 101.6 | 63.6 |
| 105 | 68.0 |
| 110 | 74.6 |
| 115 | 81.5 |
| 120 | 88.8 |
| 127 | 99.4 |
| 140 | 120.8 |
| 145 | 129.6 |
| 150 | 138.7 |
| 152.4 | 143.2 |
| 170 | 178.2 |
| 180 | 199.7 |
