Usage of Aerial Work Platform
Main Usage: It’s wildly used in municipal,electric power, light repairing, advertising, photography, communication,gardening, transportation, industrial and mining, docks, etc.

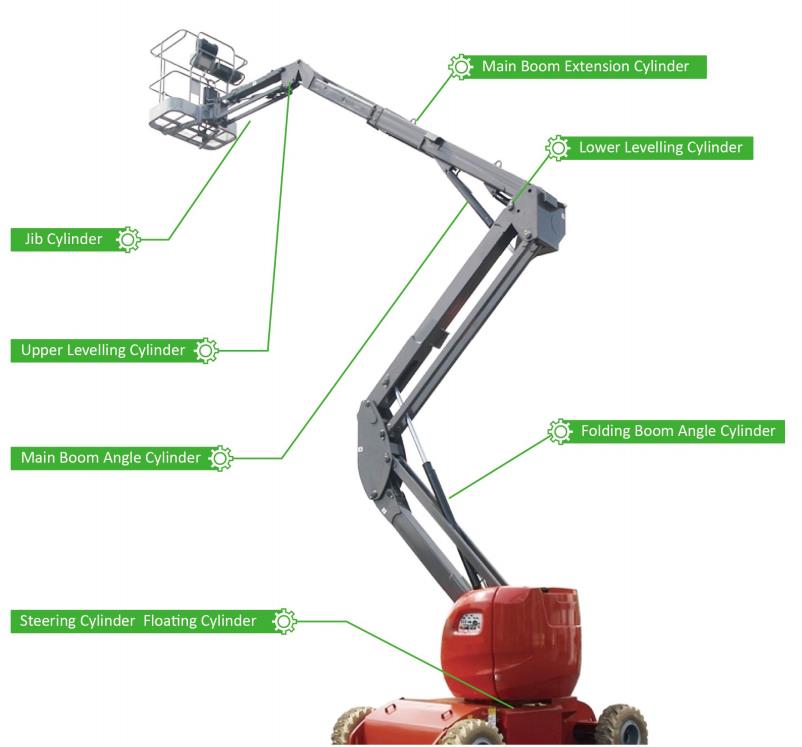

Types and Usages of Hydraulic Cylinders for Articulating Boom Lifts

Jib Cylinder
Used to adjust the horizontal angle of the work basket

Upper Levelling Cylinder
Used to ensure that the main boom is in a horizontal position

Lower Levelling Cylinder
Used to ensure that the main boom is in a horizontal position

Main Boom Extension Cylinder
Used to extend and retract the main boom, control the length of main boom

Main Boom Angle Cylinder
Used to adjust the angle of the entire main boom of the aerial work vehicle and support the entire main boom

Folding Boom Angle Cylinder
Used to adjust the angle of the folding arm of the aerial work vehicle to meet various tasks.

Steering Cylinder
Used for the steering of the aerial work platforms during autonomous moving

Floating Cylinder
Used to absorb the shock, allowing the body to remain balanced even when the ground is not smooth

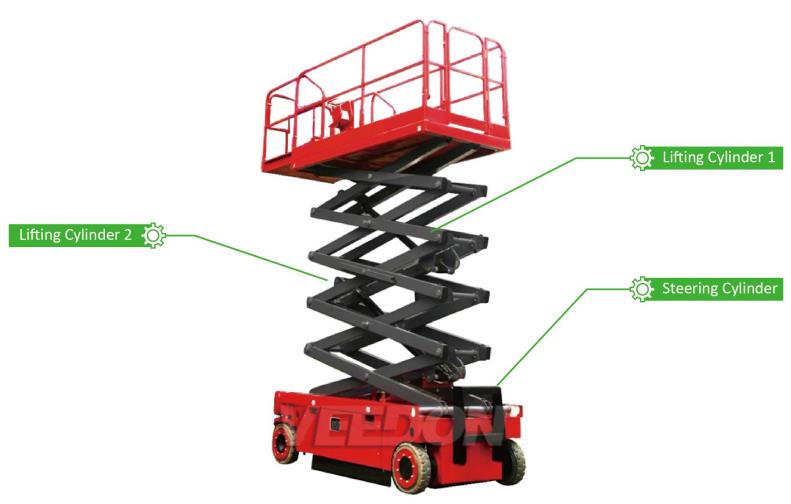

Types and Usages of Hydraulic Cylinders for Scissor Lifts

Lifting Cylinder 1
Used to adjust the height of the work basket

Lifting Cylinder 2
Used to adjust the height of the work basket

Steering Cylinder
Used for the steering of the aerial work platforms during autonomous moving

Introduction of Hydraulic Cylinders for Aerial Work Platform

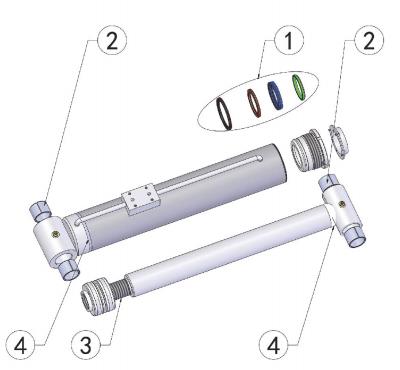

1.The seal kits areimported from Sweden.The excellentsealing design improves theresistance of pressure andimpact.The cylinders use alubrication structure with twoseals and two guiding ringswhich greatly improves theguiding, smoothness andsealing life of the cylinder.

2.With Special wear-resistantbearings, it can guarantee themachine’s service life.

3.With advanced welding technology ,it can ensure thesafety factor.

4.With modern welding technology, it guarantees thecylinder’s service life.

Basic Parameters of Hydraulic Cylinders for Articulating Boom Lifts

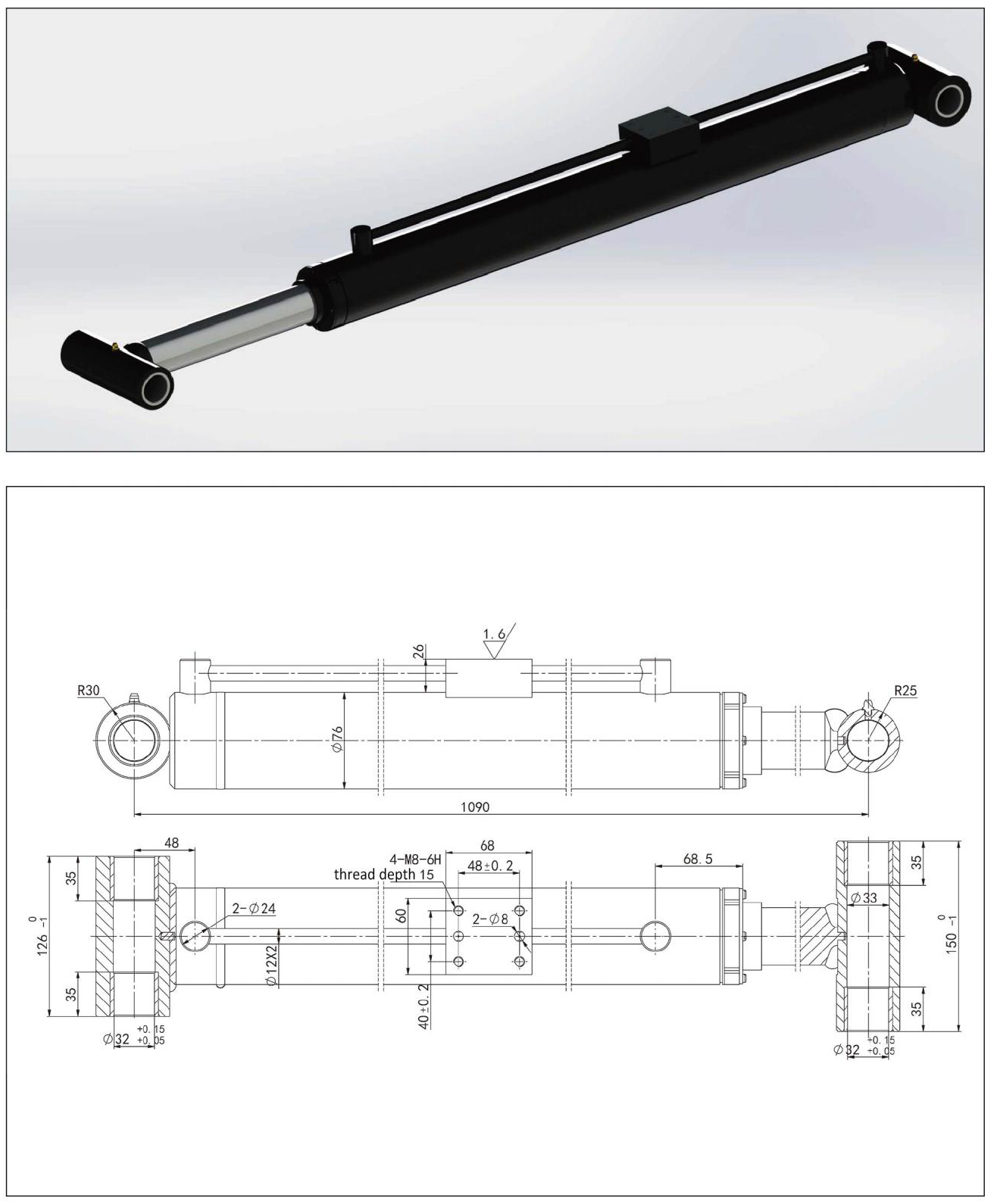

Jib Cylinder: lt’s used to adjust the horizontal angle of the work basket

Standard code:FZ-GK-63/45X566-1090

Name:Jib Cylinder

Bore:φ63

Rod:φ45

Stroke:566mm

Retraction length:1090mm

Weight:28.5KG
